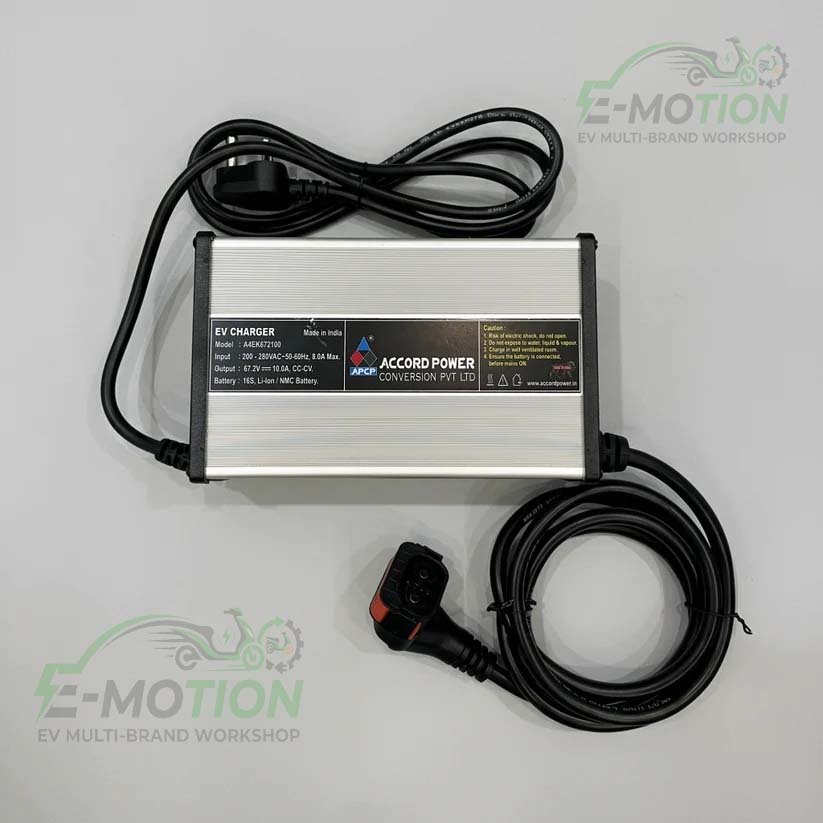

BattRE Storie 67.2V 10A Lithium Battery Charger (CAN Protocol) (Phase 2)

Compatibility Note: This is a Phase 2 charger with an Amphenol 2 + 4 Connector. It is compatible with BattRE Storie and BattRE Epic. Please verify your scooter’s connector matches the image and description before purchasing.

Key Highlights:

• Origin: Made in India
• Warranty: 6 Months from the date of purchase
• Return Policy: 7 Days Return/Replacement (See Refund Policy for details)
• Estimated Delivery: 3-10 Days

Technical Features:

• Phase 2 CAN Protocol: Intelligent communication with the BMS for safe charging.
• Smart Charging Profile: Uses Constant Current & Constant Voltage (CC & CV) with Multi-Stage charging.
• Technology: SMPS-based with Pulse Width Modulation (PWM) and built-in MCU.

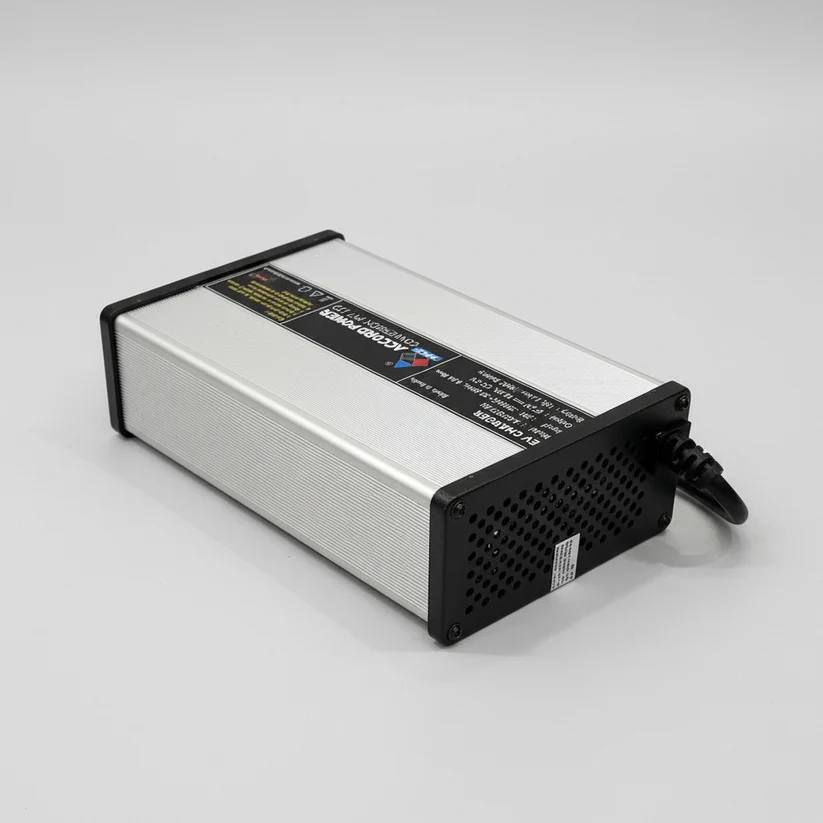

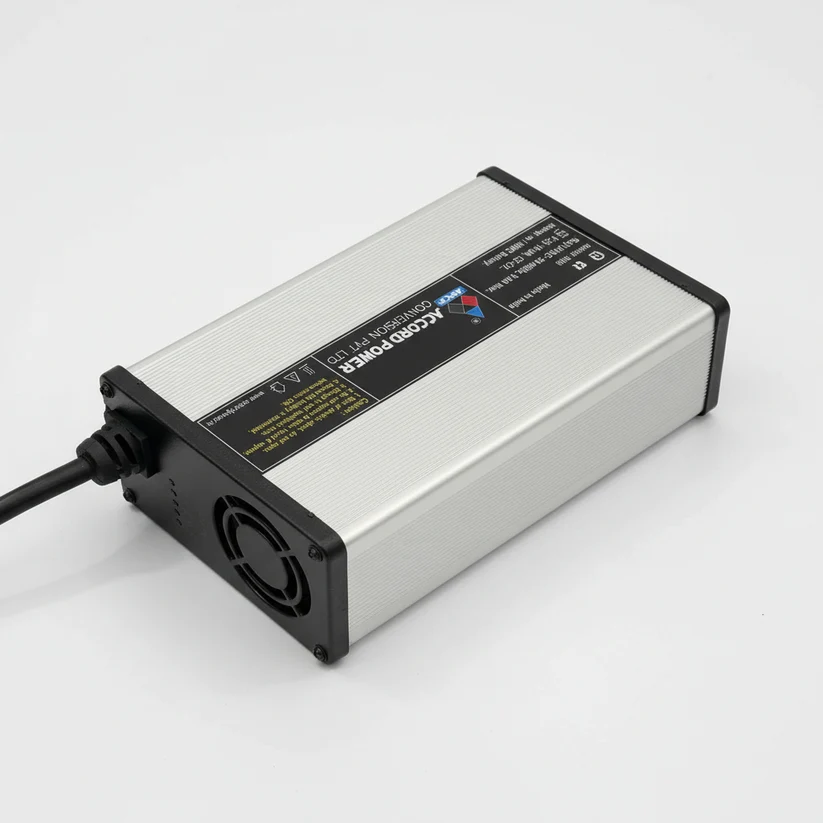

• Advanced Cooling: Forced air cooling via a built-in DC fan.
• AC Cut-Off: Integrated AC input high-voltage cut-off for surge protection.
• Design: Compact, lightweight, and travel-friendly.

Mechanical Specifications:

• Dimensions (L x W x H): 200 mm x 125 mm x 75 mm
• Weight: 2 Kg
• Connector Type: Amphenol (2 Pin + 4 Pin)

Electrical Specifications:

Input:

• Input Voltage: 200V – 280V AC
• Frequency: 50 – 60 Hz
• Max Input Current: 8 Amps (at 230V AC)

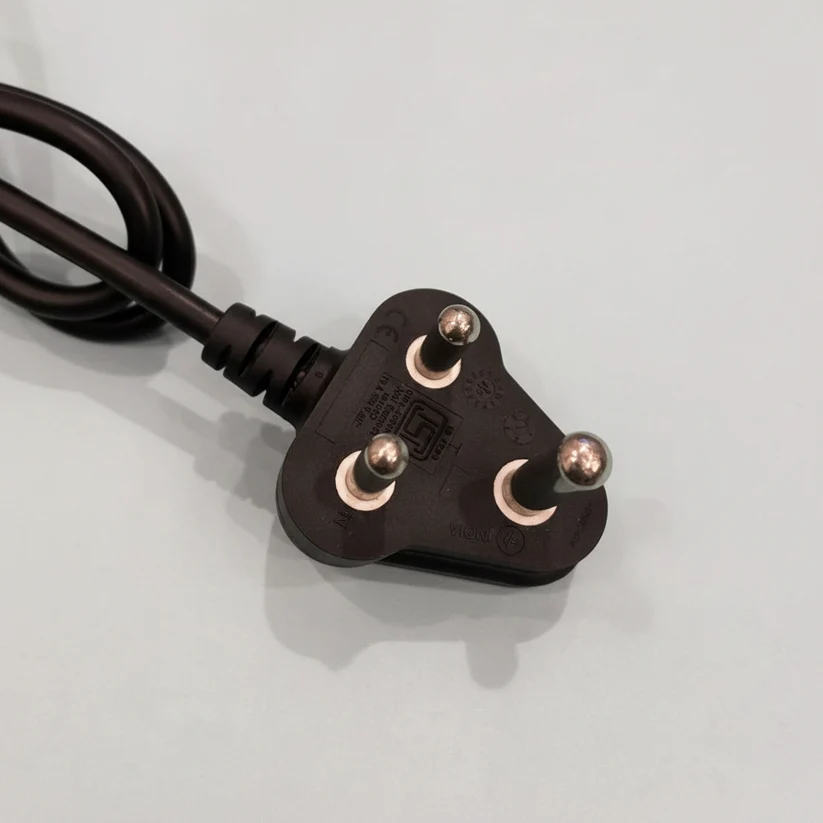

• Note: Connect input mains cord to a standard 5Amp wall socket with proper grounding.

Output:

• Output Voltage: 67.2V DC
• Output Current: 10 Amps
• Battery Application: 60V Lithium-Ion

LED Status Indicators:

• Power ON: Green LED Constant
• 0% – 25%: 25% Red LED Flashing
• 25% – 50%: 25% Red (Constant) + 50% Red (Flashing)
• 50% – 75%: 25% & 50% Red (Constant) + 75% Red (Flashing)
• 75% – 99%: 25%, 50% & 75% Red (Constant) + 100% Red (Flashing)
• 100% (Full): All Red LEDs Constant

Safety Instructions:

• Grounding: Ensure the AC wall socket has a proper Earth connection.
• Connection Order: Connect the DC output to the battery before turning on the AC mains.
• Safety: Do not touch uninsulated output wires.
• Polarity: Ensure Battery Positive (+ve) connects to Charger Positive (+ve) and Negative (-ve) to Negative (-ve).

Protection Systems:

• High Voltage AC Cut-off
• Output Short Circuit Protection
• Over-Temperature Protection
• Battery Reverse Polarity Protection

Warranty Terms & Conditions: We provide service and care. The battery charger is warranted to be free from defects in material and workmanship for a period of 6 months from the date of the original invoice.

The warranty is void under the following conditions:

• Missing Identification: If the serial number is missing or tampered with.
• Physical Damage: Damage resulting from abuse, misuse, dropping, or tampering.
• Unauthorized Repair: Attempted repair or maintenance by unauthorized personnel.
• Improper Connection: Connecting the DC output to an AC source or vice versa.
• Negligence: Damage caused by negligent use, improper cleaning, or storage.
• Environmental Damage: Damage resulting from fire, water, dust, wind, lightning, or other natural causes.
• Power Issues: Failure due to power fluctuations or surges beyond the specified range.
